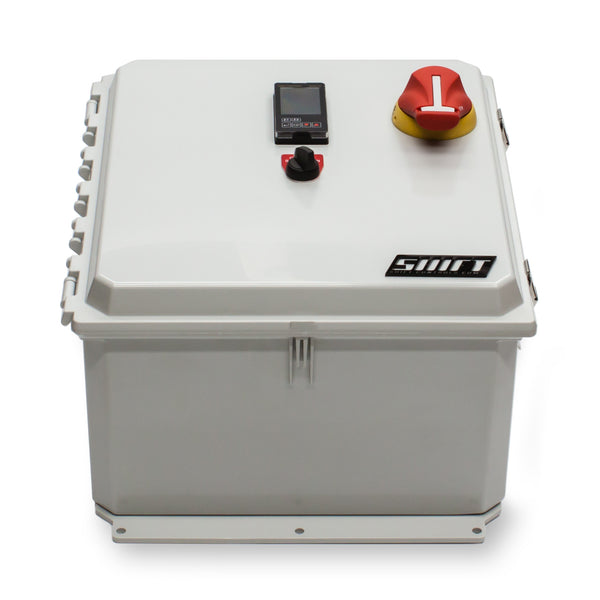

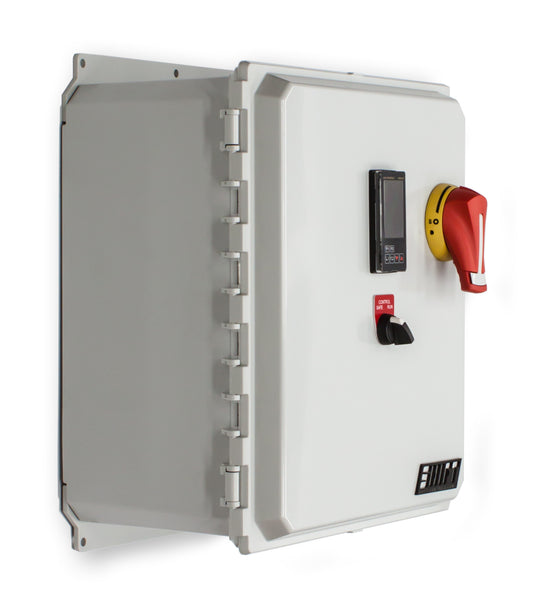

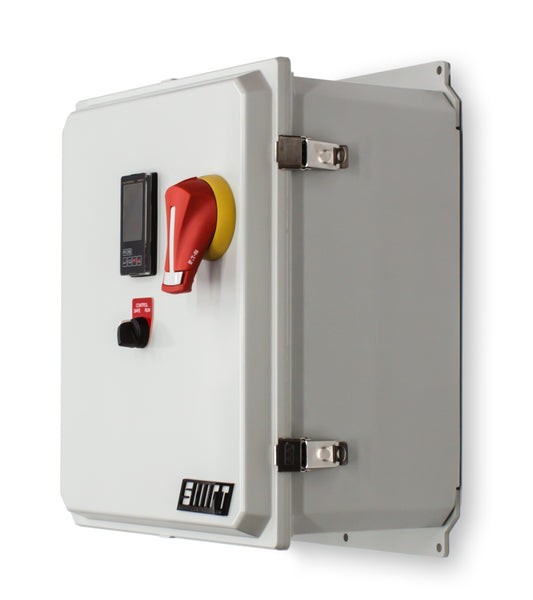

Single Phase, 480 VAC, 35 Amp, 16.8 kW

Product Description: IFPA-480-1P-35A

Shift Controls IFPA temperature control panels feature advanced PID temperature control with industry leading safety, construction quality, and control system integration. Power is controlled by a zero-cross SCR for precise temperature control. All enclosures include an integrated fused disconnect, front mount SAFE/RUN control switch, and a safety contactor to positively disconnect the heater from power when in the SAFE switch position, an over-temperature alarm state, or a thermocouple fault condition.

Seamlessly integrate your control system with a 4-20mA temperature retransmit, user programmable alarm contacts, RS-485 Modbus, and optional external interlock. The NEMA 4X corrosion resistant enclosure is ideal for your most demanding industrial and laboratory environments.


Download Spec Sheet
Download Quick Reference Guide
Download Fuse Sizing Guide
Download Manual
Download Wiring Diagram

If you have any question regarding features, technical specifications, or applications, feel free to call or email our knowledgeable staff.
CONFIGURATION


AVAILABILITY
$ 2,395.00
Shift Controls full featured integrated temperature control panels feature industry leading control, integration, and safety. All panels are manufactured in the United States with the highest quality components and construction standards.
ELECTRICAL SPECIFICATIONS
Voltage 480 VAC
Frequency 60 Hz
Phases Single
Full Load Current Rating 35 Amps
Power Rating 16.8 kW
Power Controller SCR (Zero-Cross)
Short Circuit Current Rating (SCCR) 100kA
CONTROLLER FEATURES AND CONTROL SYSTEM INTEGRATION
Digital Temperature Controller Advanced PID Controller with Autotuning, Temperature Ramping and Programmable Profiles, 10-Segment LED Power Output Display, Color Changing Display Face when in Alarm, Temperature Filtering
Front Panel Mounted SAFE/RUN Switch  When the control switch is in the SAFE position, Controller is set to Stop mode and the Safety Contactor is Opened
MODBUS Interface Addressable RS-485 MODBUS Communication (RTU or ASCII)
Data Register Tables and Communication Protocols are Detailed in the Manual
Analog Temperature Retransmit 4-20 mA Sourcing Signal Available Through Terminal Blocks
Programmable Over-Temperature Alarm/Status 250VAC, 5 Amp, Dry-Contact, Normally Open Relay Contact Available Through Terminal Blocks
Optional Remote Enable 24 VDC or 120 VAC Interlock Relay Available
SAFETY
Electrical Construction All Internal Terminals and Components are Finger-Safe (IP20)
Electrical Design and Construction Excced NEC and UL-508A Standards
Main Power Fusing Class J Fast Acting Fuses Included
Disconnecting Fuse Holder
Control Power Fusing Control Transformer with 1 Amp Fuses Included
on Primary and Secondary Side of Transformer
Heater Load Disconnect-
Safety Contactor Opens Upon
Overtemperature Condition - Programmable and Latching
Front Panel Safe/Run Switch Placed in Safe Position
Open Thermocouple or Open Sensor Optional External Interlock
Factory Acceptance Testing Fully Inspected and Tested Under Load Before Shipment
Agency Approvals All Components are UL Listed or Recognized
CONSTRUCTION
Components Securely Mounted with Grounded DIN Rail Mounts
Name Brand American and German Manufacturers
Wiring Connections Labeled Terminal Blocks Used for Wiring Connections
Wires Terminated with Ferrules or Spade Ends, Clearly Labeled with Wire Numbers Corresponding to Included Wiring Diagrams
Enclosure 16" x 14" x 7.8" (H x W x D)
ENVIRONMENTAL SPECIFICATIONS
Enclosure Material Polycarbonate Enclosure with Stainless Steel Hardware
Environmental Rating NEMA 4X Washdown Rated, IP66
Ambient Temperature Rating 32 to 95°F (0 to 35°C)
Indoor Use Only
Storage Temperature Range -4°F to 149°F (-20°C to 65°C)
Relative Humidity 10-85% Non-Condensing
Altitude 2000m or less
PRODUCT OPTIONS
Remote/External Enable 24VDC or 120 VAC Coil Interlock Relay
Energize to set Controller in RUN Mode and Close Safety Contactor
De-Energize to set Controller in SAFE Mode and Open Safety Contactor
Shift Controls is committed to producing a product where safety is paramount. We realize safety directly corresponds to meticulous design, selecting the highest quality components, and demanding perfection in construction.
INTEGRAL DOOR MOUNT FUSED DISCONNECT
Electrical codes require a means to disconnect the power feed to the temperature control panel. Shift Controls IFPA panels feature an integrated, door mount, fused disconnect. The handle is lockable for maintenance and also prevents access to the interior of the panel while energized. Inside of the panel, the disconnect body contains the main branch fusing with finger-safe fuse covers.
FRONT PANEL SAFE/RUN SWITCH
A two-position RUN/SAFE selector switch allows an operator to place the temperature control panel in SAFE mode when not in use. This de-energizes the safety contactor and places the controller in a STOP mode.
SAFETY POWER CONTACTOR
Power is physically disconnected from the heater by an electromechanical contactor when the following occurs:
• The SAFE/RUN Switch is placed in the SAFE position
• An over-temperature condition occurs (PV > ALARM Temp)
• A sensor fault occurs (ex. thermocouple becomes disconnected)
• The optional external interlock relay is de-energized
This feature ensures power is disconnected from the heater to protect personnel and equipment during a fault, over-temperature condition or when not in use.
CURRENT-LIMITING MAIN BRANCH FUSING
All panels feature current-limiting fusing which comply with main branch power distribution requirements. The current-limiting specification limits the energy released during an over-current condition and allows the panel to be rated with an industry leading Short Circuit Current Rating (SCCR) of 100 kA.
FINGER-SAFE (IP2X) CONSTRUCTION
The interior of the panel is designed and constructed to be fully finger-safe (IP2X) which can reduce the risk of accidental contact with energized parts during OSHA and NFPA 70E allowable energized work.
 QUALITY COMPONENTS AND CONSTRUCTION
All components are manufactured by industry leading name brands and are UL Listed or UL Recognized. The panel design complies with or exceeds UL508A and NEC Electrical Codes. All wires and terminal blocks are clearly labeled and numbered according to the included detailed wiring diagrams. Control wiring is separated from the main power wiring, through fuse protection, reducing risk to the user and connected systems.
Shift Controls understands having the right options available reduces installation time and costs. We are committed to providing your temperature control panel with the options you need for easy installation, commissioning, and operation.

Below are the factory available options, feel free to contact our technical team for any other option or configuration. We will be happy to provide a customized solution for you.
EXTERNAL REMOTE ENABLE/INTERLOCK RELAY
Add the ability to remotely enable and disable the temperature control panel. When the Enable/Interlock Relay coil is energized, the safety power contactor is energized and the controller is put into RUN Mode.
Factory Stocked Options 24 VDC Coil, 120V VAC Coil
INPUT SENSOR TYPE
Factory Stocked Options

Thermocople Type: K, J

Factory Custom Options
(Typically 7-Day Lead-Time)
Thermocouple Type: T, E, N, R, S, B, L, U, TXK
RTD: JPt100, Pt100, Ni120, Cu50
Analog: 0-50mV, 0-5V, 0-10V, 4-20mA, 0-20mA
INPUT SENSOR CONNECTION
Internal DIN Mount Bi-Metal Screw Terminal Block (Standard) A thermocouple screw terminal block is provided internal to the panel for easy sensor installation.
Factory Custom Options (Typically 7-Day Lead Time) Contact our factory for other sensor connection options. This can be helpful in ensuring standardization of connectors across your facility. We can provide a customized solution upon request.
MAIN BRANCH FUSE SIZE
Panel Maximum Rated Fuse Size
(Standard)
Main fuse protection of heater loads should be sized to at least 125%  and not more than 160% (power controller manufacturer recommendation) of the heater's full load current. Panels will include a set fuses sized for the panel maximum allowable current.
Factory Custom Options
(Typically 5-Day Lead Time)
Choose to include another fuse size from the drop down menu.
POWER CONNECTION
Internal DIN Mount Screw Terminal Blocks (Line and Load) The line and load wiring is connected to the panel by screw terminal blocks. This option provides the greatest flexibility in either conduit or corded installations.
Factory Custom Options
(Typically 7-Day Lead Time)
Contact our technical team for other connection options such as Line and Load cords with twist-lock plug and sockets.
Shift Controls is proud of the products we design, manufacture, and support. We stand behind every product we sell with lifetime phone and email technical support.

Every panel ships with a bound color hardcopy of the full manual covering installation, controller programming, and operation. Also included are hardcopies of the full electrical diagrams with wire numbers, colors and sizes and terminal numbers and a quick reference guide for the controller operation.
SPECIFICATION SHEETS AND MANUALS
Temperature Control Panel Spec Sheet
Quick Reference Guide (For Controller)
Fuse Sizing Diagram and Table
User Manual (Complete)
WIRING DIAGRAMS
Wiring Diagram with External Interlock
Wiring Diagram without External Interlock
